Tepsu - Type-C PD Power Supply (+/- 12V + 5V) for Eurorack and DIY
Tepsu - Type-C PD Power Supply (+/- 12V + 5V) for Eurorack and DIY
Regular price
€69,00 EUR
Regular price
Sale price
€69,00 EUR
Unit price
/
per

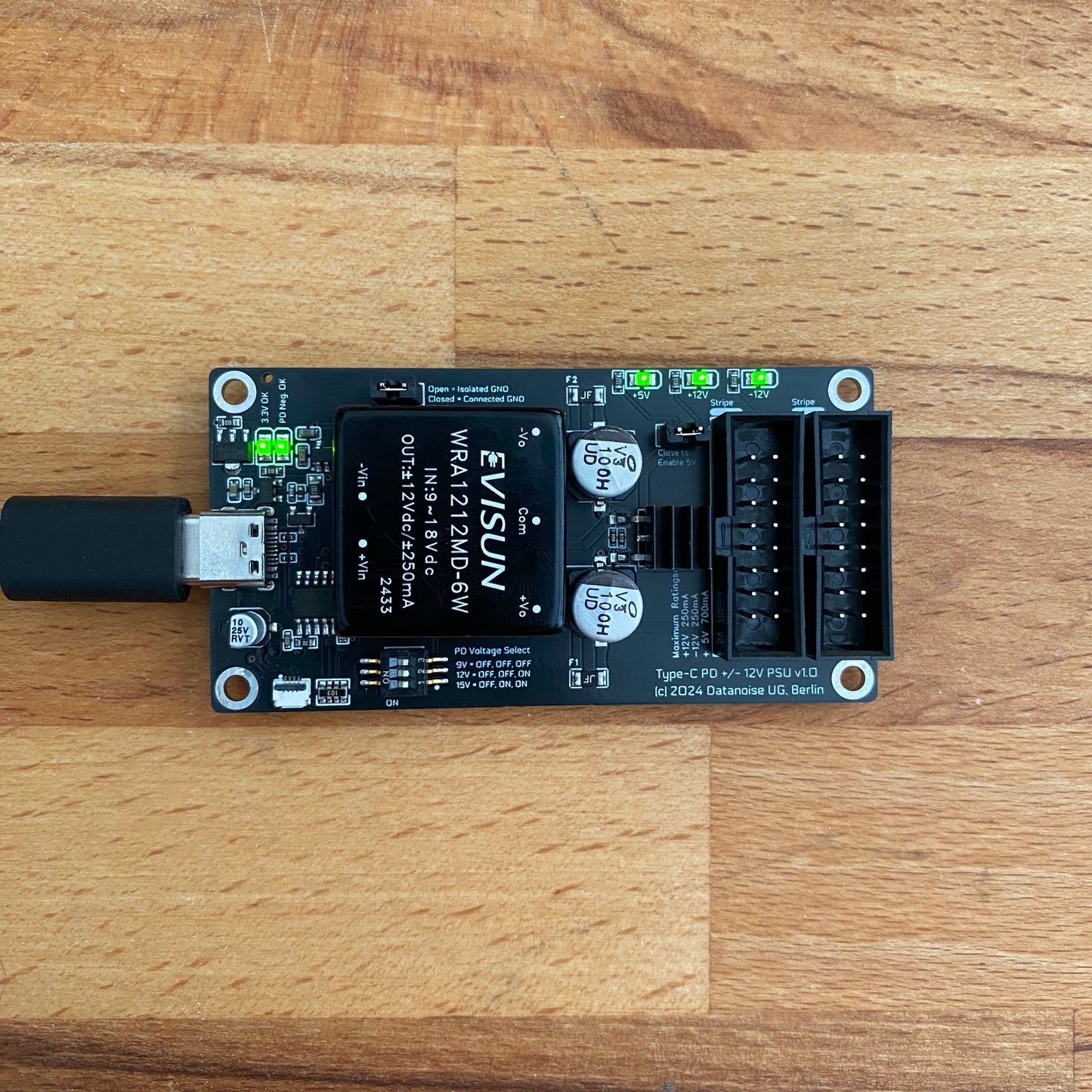

The Type-C PD Power supply PSU that allows you to power your small Eurorack System or Bench Test System, Breadboards using Type-C Power Delivery.
This board comes fully preassembled.
The specifications are:
- Type-C connector
- Integrated Circuit for PD Sink management
- FIxed 9V PD input - next revision will use the 3-position DIP switch for PD voltage selection (9V, 12V, 15V)
- 9-18V to +/- 12V DC-DC module with 6W (250mA)
- PTC resettable fuses on board
- 5V regulator for optional 5V
- Indicator LEDs for PD status
- Indicator LEDs for individual power (+5V, +/-12V)
- Jumper to enable/disable 5V
- Jumper to change between isolated or unisolated ground
- 2x 2x8 Pin IDC connector (for connecting 2 modules, or a bus board)
Note that operation at 20V is not supported, due to the DC-DC Module.
