The OctaWave is compatible with the ADAT output of Ableton Push 3 and can be used to extend the Audio Outputs by 8 channels (think of separate outs for. your tracks and more) and/or add more Eurorack CV Outs.
Specifications
ADAT Lightpipe Input (Optical)
USB Type-C for Power Supply (with power filtering)
24-bit Audio at 44/48kHz
Low-jitter (< 1.3ns) PLL
-120dB* noise floor
112dB* Dynamic Range
DC-coupled outputs with 6V Peak-to-Peak** (+/- 3.06V) suitable for CV Output
Linear Frequency Response (0.1dB non-linearity typical)

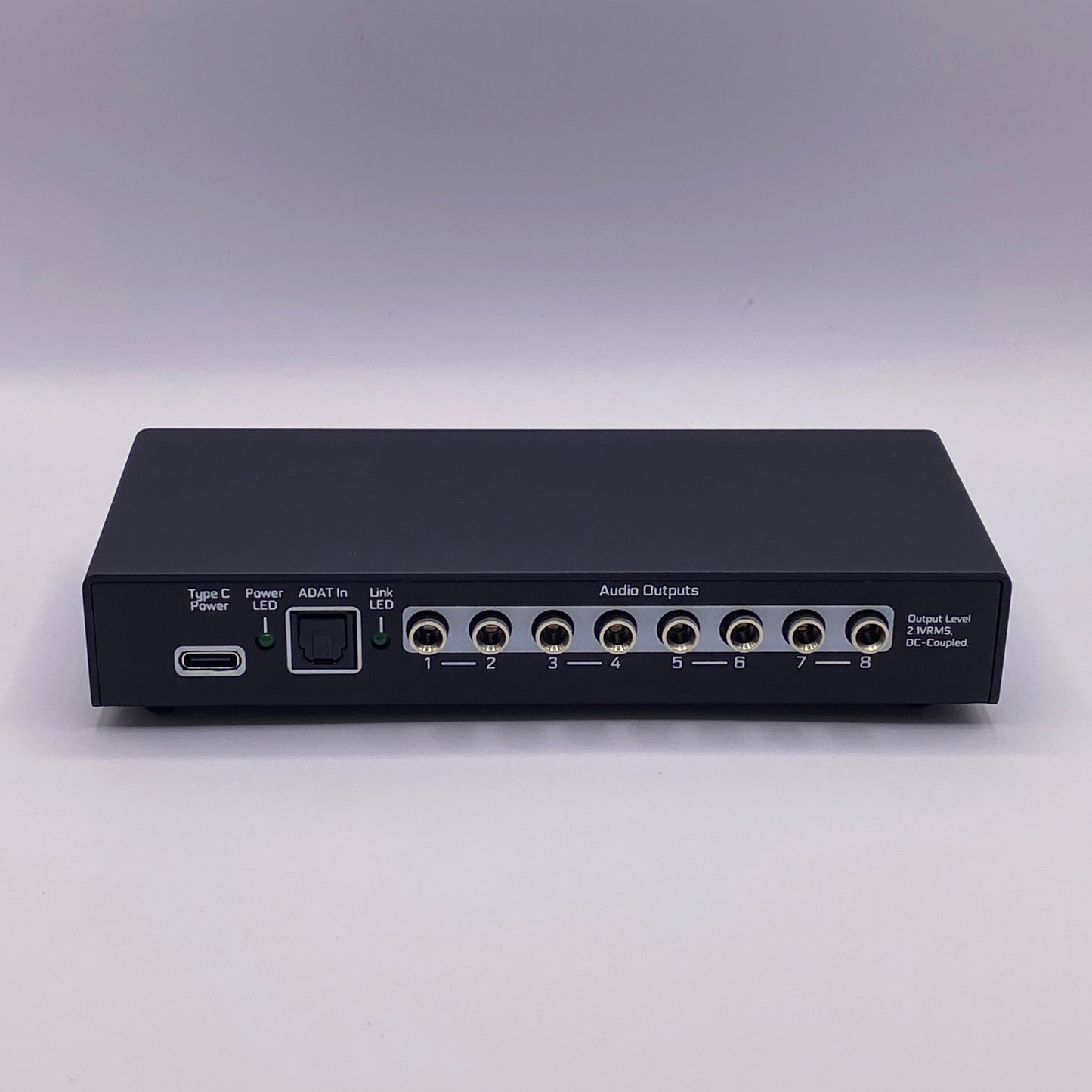

8x 3.5mm Jacks (mono, mechanically stereo for more stability) with 2.1V RMS output level, DC-coupled, suited for Eurorack control signals and high-quality audio
Low-power (100-120mA @ 5V)
* The actual dynamic range and noise floor depends on the quality of the USB-C power supply etc.
** If you are using the OctaWave Scale4 module, you will get a full and precise +/- 10V range, which works perfectly with VCV Rack etc.

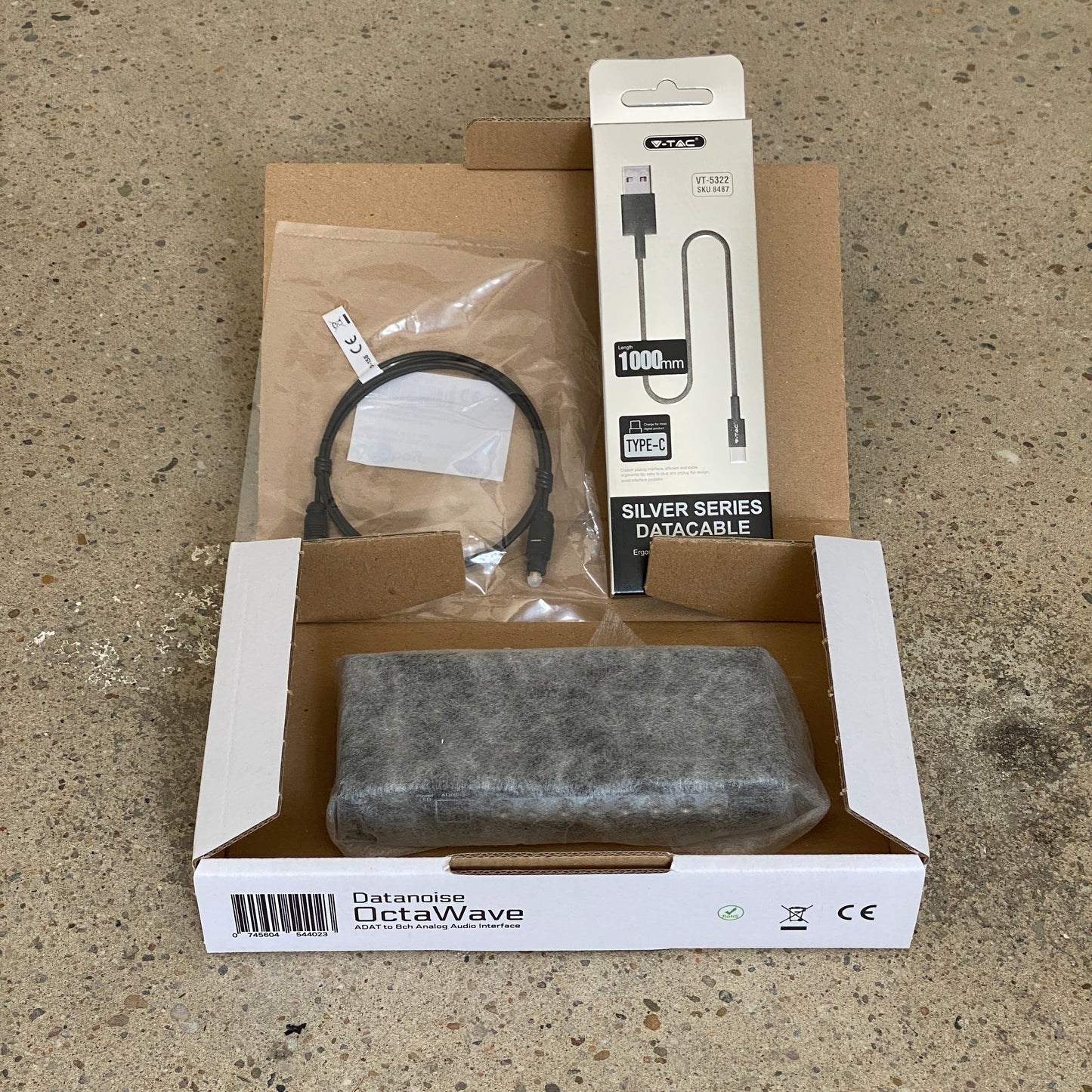

Package contents
1x OctaWave 1x USB Type-A to USB Type-C Cable ** 1x TOSLink Optical Cable **
